The solar array consists of several of photovoltaic modules interconnected in series and/or in parallel in order to supply the required energy.

These modules are mounted on a metallic structure which supports the array at a specific tilt angle.

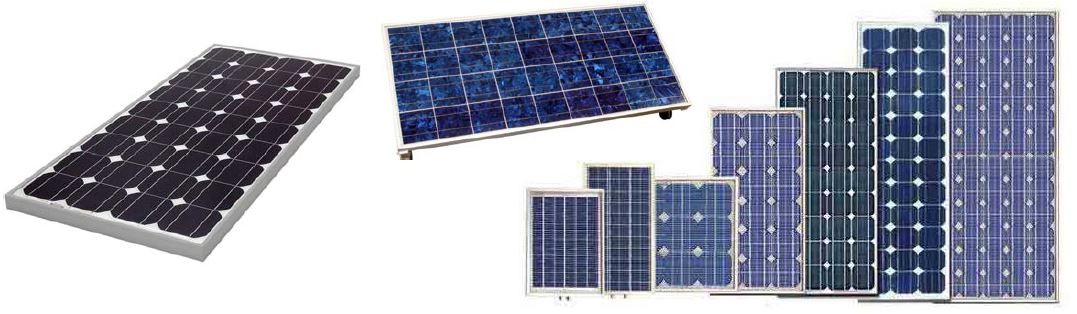

modphot1The modules

The electrical performances are guaranteed for a period of up to 25 years, subject to manufacturer's conditions.

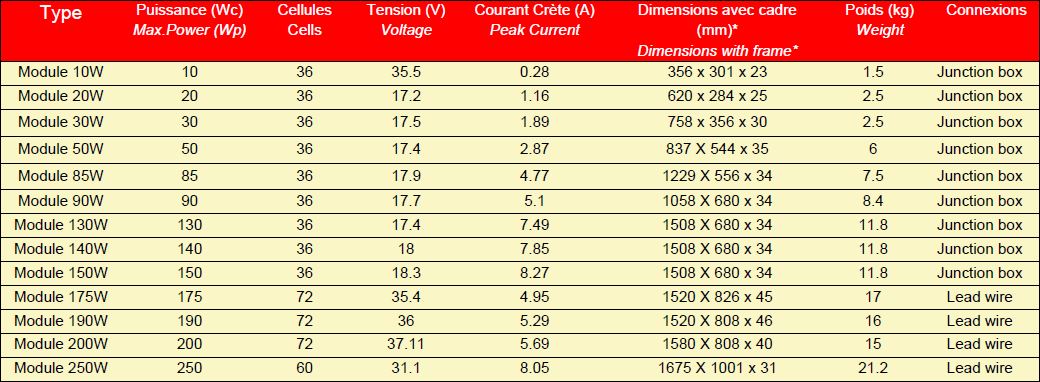

Technical specifications

. Type of cells : Poly or single crystal
. 36 or 72 cells, depending on the type of module . Cell efficiency : >13% (cells)
. Laminate : EVA
. Front side : Tempered glass
. Back side : Tedlar
. Frame : Anodized aluminium


For other modules, please contact us.
